Product Video
Product Overview
Product Features
· The world's first ultra-compact lead-free device response unit;
· Although ultra-small in size, it can create a temperature profile HAT;
· Composed of 5 heating zones;
· Because of its minimal size, it is easy to configure and layout in factories;
· Achieves power saving and nitrogen (N2) conservation;
· Most suitable for multi-variety, small batch production.
Product Specifications
Standard Features
· Touchscreen Control
· Activated Carbon Regeneration Device
· Flux Recovery Machine
· Substrate Stagnation Alarm
· Independent Control of Fan Inverter
Options
· UPS Uninterruptible Power Supply
· Water-cooled Chiller Unit
· Oxygen Concentration Controller
· Handling Substrate Unloading
· Heater Disconnection Alarm
· Area Sensor
| Target Substrate | MAX. W150×L150 (mm) MIN. W50×L50 (mm) |
| Component Height | Upper 10,15,20,25mm Lower 10,15,20,25mm |
| Worktable Base | 3mm |
| N2 Gas Supply Source | 99.99% or higher 0.4～0.7Mpa 150NL/min or more |
| Substrate Transport Height (Rolling Line) | 900±20mm |
| Input Power | AC200V-50/60Hz-3φ 21kVA 61A |

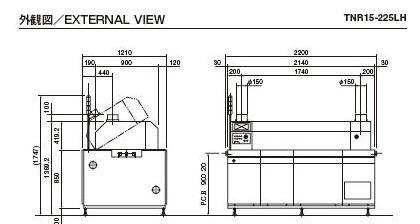

| Overall Dimensions | W1210×L2200※1×H1370※2 (mm) |
| Total Weight | Approx. 600kg |
| Transport Speed | 0.1～0.7m/min |
Product Advantages
Application Areas
Recommended Products
FAQ
